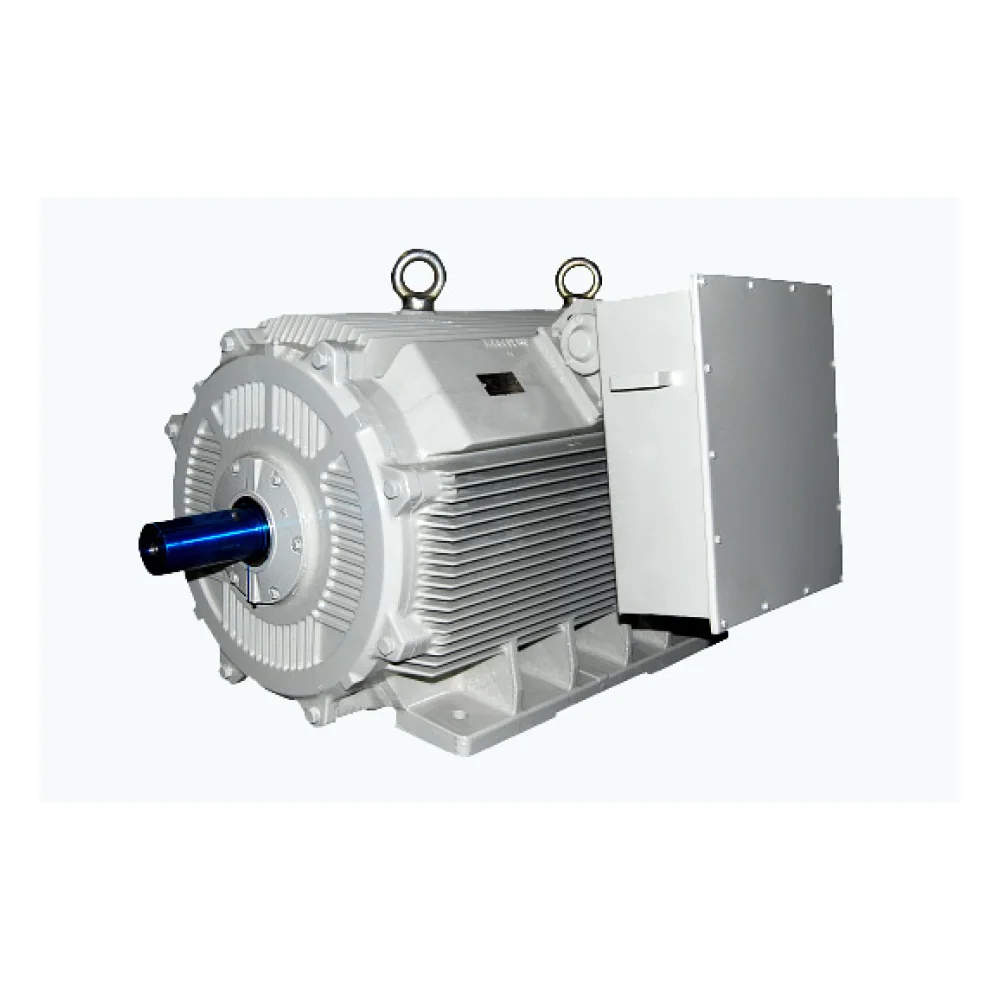

Cast Iron Enclosure Motors – Safe Area

CG’s LV cast iron motor range covers outputs from 0.37 kW to 710 kW in frame sizes 63 to 500.

0.37 kW to 710 kWOutput
63 to 500Frame sizes
IE2. IE3 and IE4 is also available on requestStandard efficiency
Certificate
Overview

About Cast Iron Enclosure Motors – Safe Area

These motors suit a diverse range of applications, from pharmaceutical to steel production and from cranes to roller table drives. Many such applications have adverse operating conditions, including repeated starting and occasional overloading, and CG’s LV standard and custom made motors are well suited to these situations and to most severe applications.

Features

Key features

Standard Motors are designed for foot mounting; other mountings are also available on request

Standard Efficiency is IE2. IE3 and IE4 is also available on request

Standard Levels of enclosure protection for motor and terminal box is IP55. With IP56,IP65 and IP66 available on request

Safe area motors have terminal box on the RHS for SCR, and Top for Slip ring as a standard. Other TB position can be offered on request.

Standard paint shade is RAL7034 Yellow Grey, others are also available on request

Features

Accessories on request

Thermistor

Space Heater

Resistance Temperature Detector

Bearing Temperature Detectors

Insulated Bearing ( Frame IEC 200 and above)

Roller Bearing ( Frame IEC 225 and above)

External Blowers

Fabricated Terminal Box

Encoder Mounting arrangement

MS Canopy

Double Compression Cable Glands

Technical data

Specifications

Output
0.37 kW to 710 kW
Frame sizes
63 to 500
Standard efficiency
IE2. IE3 and IE4 is also available on request
