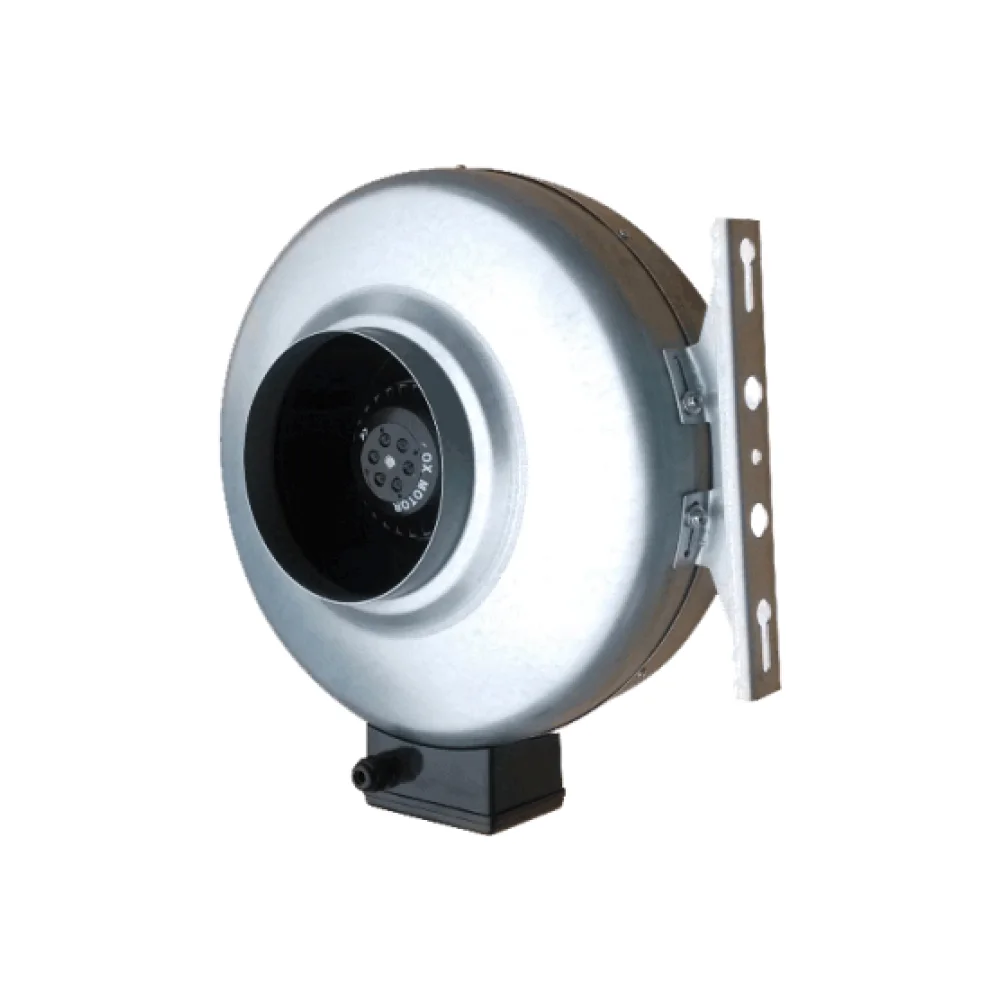

Circular Inline Fans

Caryaire centrifugal inline fans ventilate residential, commercial and industrial spaces such as toilets, bathrooms, cafeterias and laundry rooms in homes, hotels, apartments and offices.

Airtight, seamed casing made from galvanised steel having round duct connections ranging from 100 mm to 315 mm diameter.Casing
Catalogue
Overview

About Circular Inline Fans

They are designed for ducted systems that need high air capacities.

Technical data

Specifications

Casing
Airtight, seamed casing made from galvanised steel having round duct connections ranging from 100 mm to 315 mm diameter.
Motor
CE certified 2 pole external rotor single phase asynchronous motor with thermal contacts. Motors have IP-44 enclosure with class F insulation.
Impeller
Backward curved impeller made from high grade plastic in models up to 160 mm dia and galvanised steel in 200 mm dia & above models.
Power supply
The fan motor shall be suitable for single phase 220V±6%/50Hz electric supply.
Speed controller
The Fan speed shall be controlled by a Voltage regulator. (supplied as an optional accessory)
