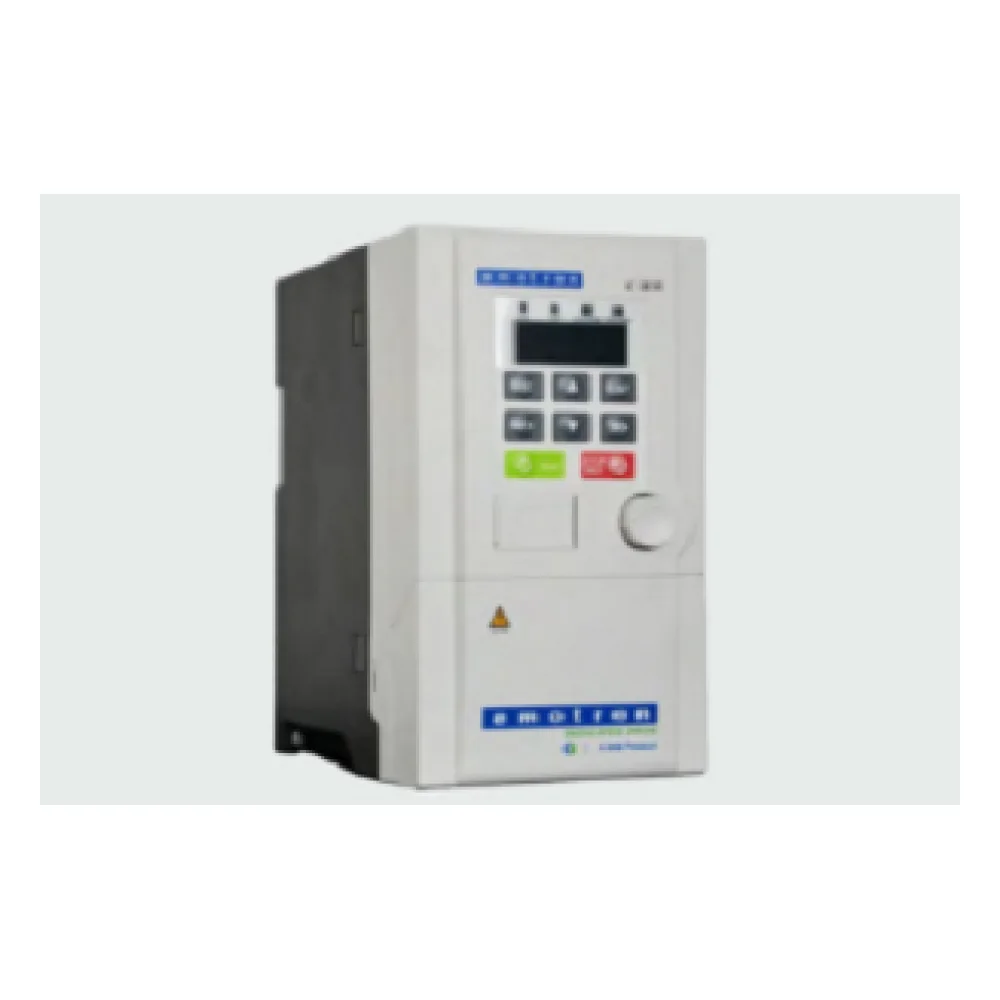

Emotron VSM
Emotron VSM is a simple-to-use AC drive for standard industrial applications, built to save energy and to be commissioned quickly.
0.75kW to 3.7kWPower rating
three phase, 380V – 415V (± 20%)Supply
IP20Enclosure
Overview
About Emotron VSM
A cost-effective, safe and energy-efficient solution for demanding industrial environments, the Emotron VSM offers process owners a high level of reliability and productivity. It suits applications such as fans, pumps, blowers and compressors.
As standard, the VSM is rated for heavy duty and has a built-in brake chopper, so it suits a variety of industrial applications. Multi-step frequency and a choice of acceleration and deceleration curves let it follow different speed profiles as your process requires. The built-in potentiometer on the keypad removes the need for an external potentiometer, saving cost and improving reliability for OEMs. Alongside hardwired communication, Modbus 485 communication comes as standard, so the drive can be controlled from the plant control system.
Designed for 50°C ambient temperature and fitted with coated boards, the VSM is an ideal choice for tough industrial environments.
Features
Key features
LED graphical display.
Supports both Induction Motor and Permanent magnet motor.
Heavy duty drive for various applications.
Standard rated for 50° C.
Built in brake chopper.
High-speed pulse input
Strong overload capability with 200% of rated load for 1 sec.
Excellent performance with high start torque characteristic.
Built-in PLC Logic Functions, Virtual Digital I/Os with multi Logic functions, Timer and comparators.
V/F fully separated and semi-separated operation.
Built-in self-adaptive PID function module.
Effective and intelligent brake circuit with short time braking ability of 1.1 to 1.4 times of inverters rated power.
Oscillation suppression function.
Efficient cooling, improved reliability with independent air duct design.
Robust drive with conformal coating boards enables application in hot and humid climate. Built in EMI/EMC Filter (Class C3).
EmoWizard tool for convenient debugging
CE compliance.
Technical data
Specifications
- Power rating
- 0.75kW to 3.7kW
- Supply
- three phase, 380V – 415V (± 20%)
- Enclosure
- IP20
- Ambient temperature
- 50°C
- Communication
- Modbus 485
- Standard
- IEC
