CG single phase flange mounted electric motor

Crompton motor & drives Single phase motors

Flange Motors

CG offers a complete range of heavy duty IEC flange mounted motors for a wide variety of industrial applications, from 180W to 3700W.

180W to 3700WOutput

NEMA 48, 56, 100S frame and IEC 63 to 132 frameFrames

Certificate

Overview

About Flange Motors

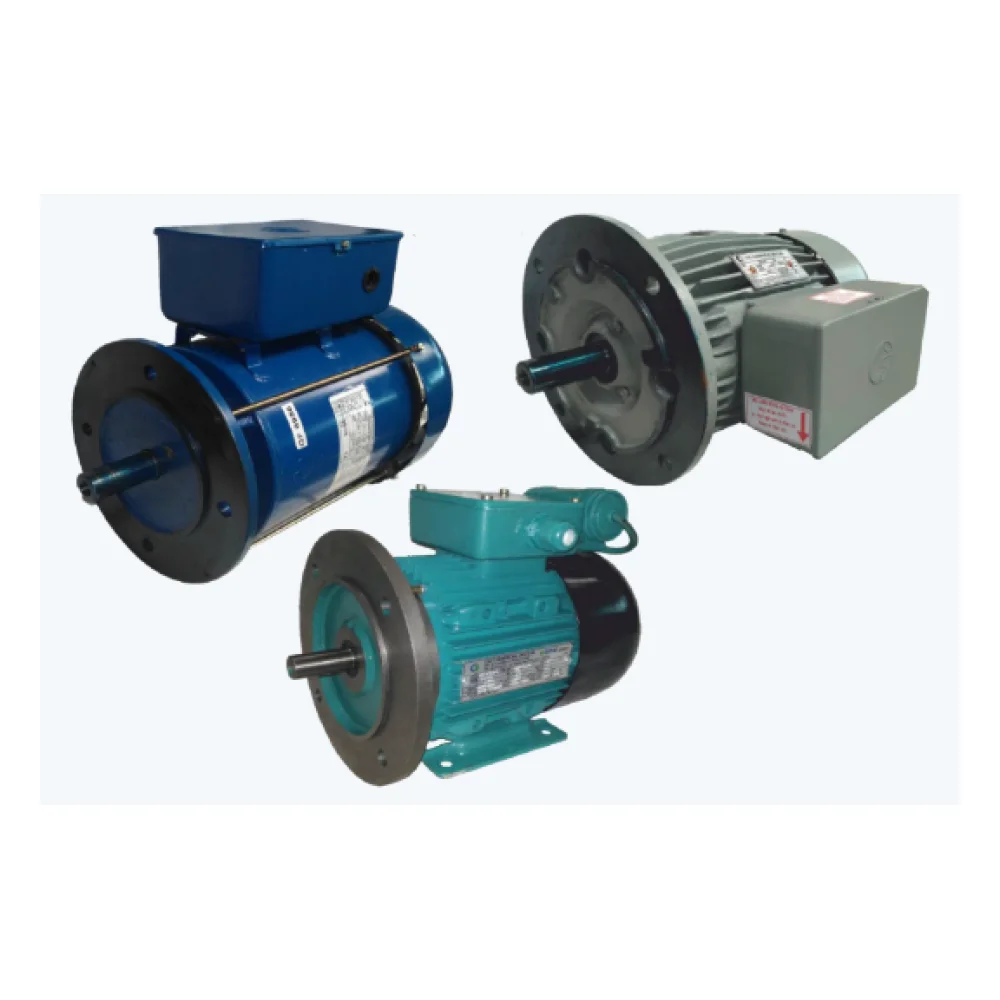

They are available in all three constructions: sheet metal body, cast iron body and aluminium body designs.

Features

Key features

Motors available in Rolled Sheet Metal Body, Cast Iron and Aluminium Body constructions

Flange and Face mounting arrangements ranges from 63 frame to 132 frame

Motors available in NEMA 48, 56, 100S frame and IEC 63 to 132 frame

B14( face) mounting available as per the application requirement. B34 and B35 mounting can be provided on request

Customized mounting can be provided as per the application requirement

Technical data

Specifications

Output: 180W to 3700W
Frames: NEMA 48, 56, 100S frame and IEC 63 to 132 frame
Construction: Sheet metal body, Cast Iron body and Aluminium body
Poles: 2 pole and 4 pole
Applications: Gear boxes, Hydraulic packs, Pouch packing, Pump, Pulverizer
Standard: IS
