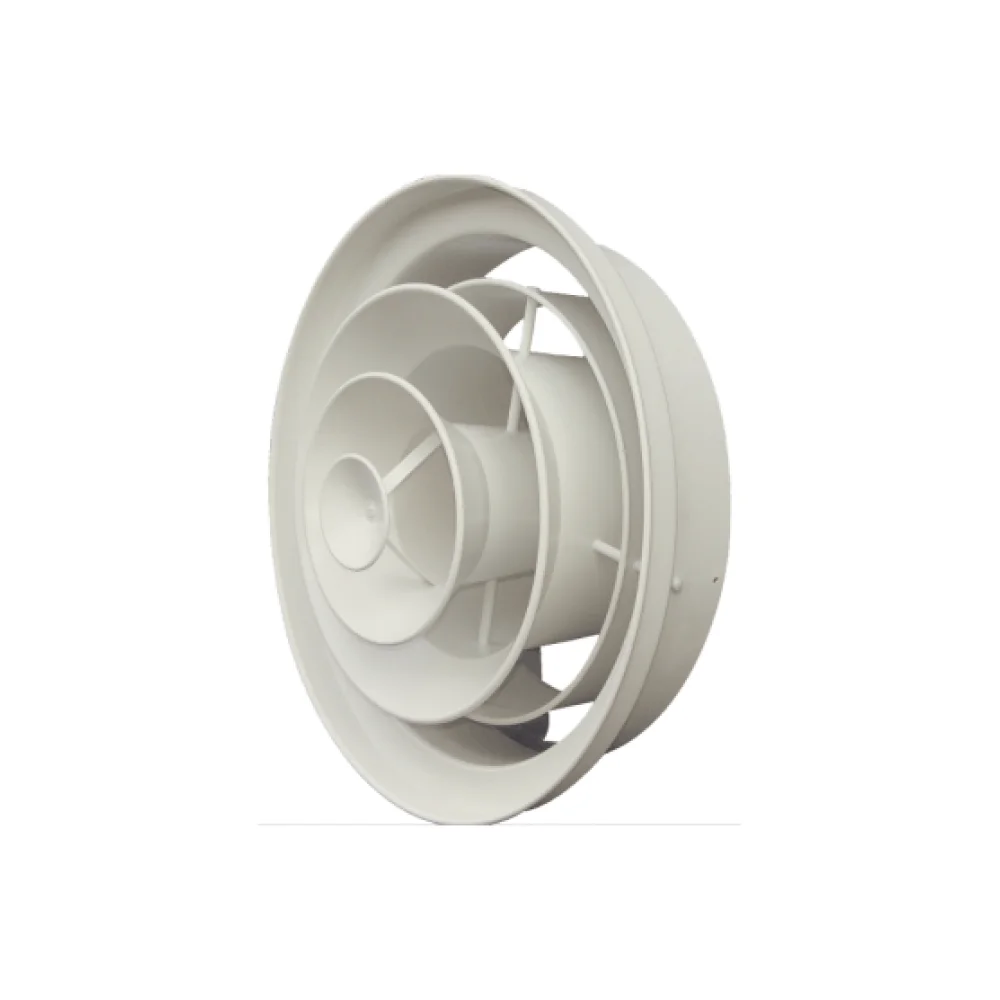

Multicone Jet Diffuser
The Caryaire multicone jet diffuser ASJN704 handles large air flow rates and relatively long throws, conditioning large spaces such as terminal buildings, factories, warehouses and auditoriums.
ASJN704Model
spun from 1.6mm thick Aluminium SheetsConstruction
Overview
About Multicone Jet Diffuser
Its core pivots on its axis, allowing complete rotation or reversal to switch between normal diffusion and jet throw patterns.
Features
Key features
Reversible and Rotatable, Providing Short and Long Jet Throw patterns
Ideal for Terminal Buildings, Warehouses & Factories
Technical data
Specifications
- Model
- ASJN704
- Construction
- spun from 1.6mm thick Aluminium Sheets
- Finish
- Powder Coated in Standard Caryaire White (CW) or Caryaire Off White (CO)
