RER

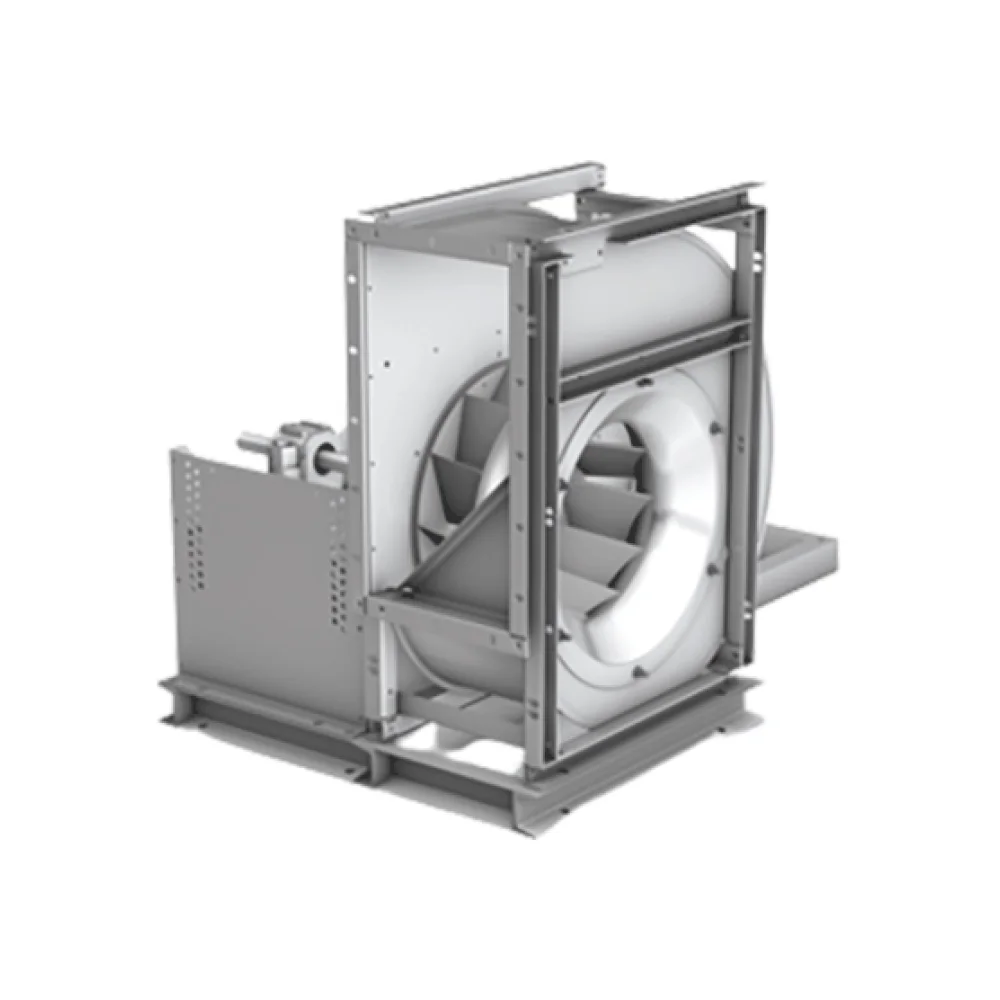

The RER 13 and RER 17 smoke extraction fans come in the quality you expect from Nicotra Gebhardt and are packed with technical details for maximum power.
19 different sizesSizes
up to 150,000 m3/hFlow rate
up to +400 °C for 120 minSmoke extraction
Features
Technical details
During smoke extraction, the RER conveys fumes up to +400 °C for 120 min. It can be used for permanent ventilation at temperatures of up to +80 °C
The high-performance impeller with hollow curved blades ensures quiet ventilation
The fans with a horizontal axis can be fitted in casing at angles of 0°, 90°, 180° and 270°
The insulated versions of the RER 13 and the RER 17 come with self-contained insulating casing (90°) in segments which are easy to install and dismantle
The intake and output are ready for fitting standard flanges for integration into a duct network
The spiral-shaped casing is made of galvanised (RER 17) or welded and coated sheet steel (RER 13)
A wide range of approved accessories is available for the fans
A specially designed system of electrical components including smoke detector switchgear, an optical smoke detector and a manual trigger button rounds off the range of accessories.
Technical data
Specifications
- Sizes
- 19 different sizes
- Flow rate
- up to 150,000 m3/h
- Smoke extraction
- up to +400 °C for 120 min
- Pressure
- up to 3,000 Pa
- Permanent ventilation
- up to +80 °C
Smoke extraction
