RWM

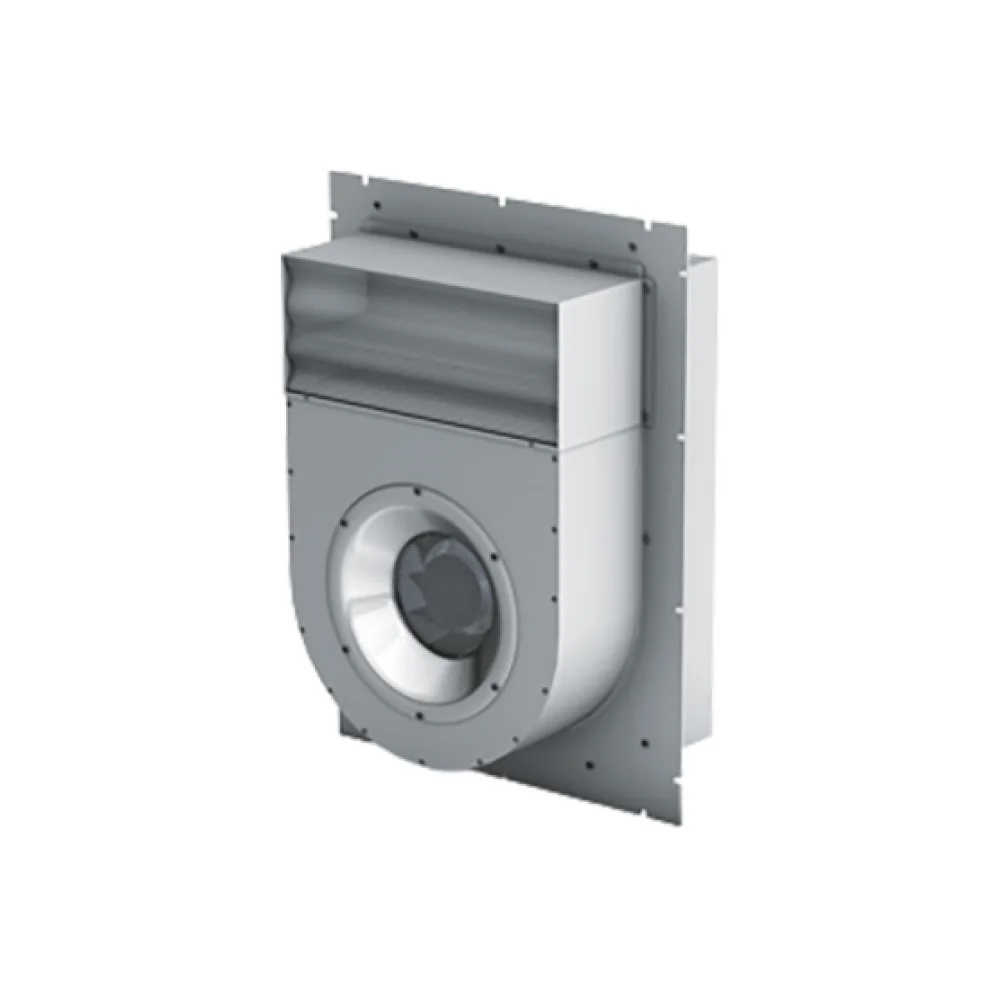

In the RWM 57 smoke extraction fan, the technical details are the secret behind its perfection.
up to 37,000 m³/hFlow rate
600 °C – 120 minSmoke extraction
up to 1,000 PaPressure
Features
Technical details
Temperatures up to +80 °C are approved for permanent ventilation
Conveys flow rates of up to 37,000 m3/h at pressure of up to 1,000 Pa
The air output is horizontal
The casing and all components subject to strain are made of galvanised or coated sheet steel
A variable range of motors offers flexible drive options
The add-on motor is completely separate from the airflow
The output opening is fitted with a protective grille
A pipe connection in line with DIN 24155-2 is fitted on the suction side
The connecting cable comes without a plug for ease of installation
The RWM 57 is supplied with tested accessories for integration into the façade and connection to the duct system
A specially designed system of electrical components including smoke detector switchgear, an optical smoke detector and a manual trigger button rounds off the range of accessories
Technical data
RWM 57
- Motor
- With an IEC-compliant motor
- Flow rate
- up to 37,000 m³/h
- Smoke extraction
- 600 °C – 120 min
- Pressure
- up to 1,000 Pa
- Certificate no.
- No. 0036 CPD RG 01 03
Smoke extraction
