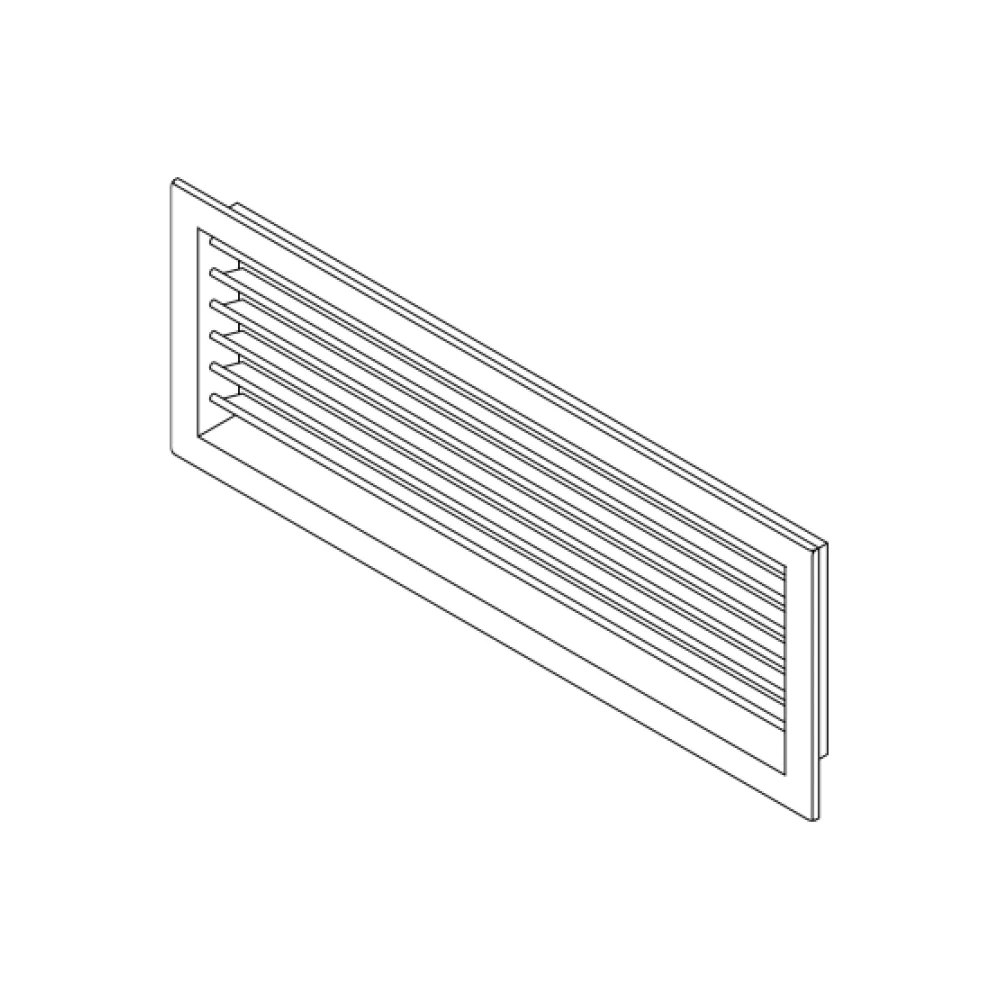

Single Louver Adjustable Grill

Caryaire SL series single louver grills have one set of fully adjustable blades for flexible supply or exhaust of air in an occupied space.

Max 1800mm W x 1200mm HMax size
Overview

About Single Louver Adjustable Grill

The louvers can be horizontal (model SL201) or vertical (model SL202). They are usually used to supply air from the side wall. The frame flange has a standard width of 20 mm.

Technical data

Dimensions

Max size
Max 1800mm W x 1200mm H
Max blade width
600mm without Vertical Mullion
Fixing
Fixed to Wall using pan head screws (holes to be drilled at site)

MOC

Frame
20mm Flange, 30mm Depth, 1.15mm Thk. Aluminium Extrusion.
Blade
1mm Thk. Aluminium extrusion with 4mm cylindrical Portion to act as pivot.
